TAG Heuer Monaco Gulf Calibre 11 CAW211R Watch Dial
Overview
This is an original TAG Heuer Monaco Gulf Calibre 11 CAW211R watch dial, a component from the limited-edition collection celebrating the partnership between TAG Heuer and Gulf Oil. The Monaco series, introduced in 1969, was the world’s first square-cased automatic chronograph and became synonymous with motorsport timekeeping, notably worn by Steve McQueen in the 1971 film “Le Mans.” The CAW211R reference specifically commemorates the Gulf Oil collaboration, featuring the brand’s signature racing colors and logos.

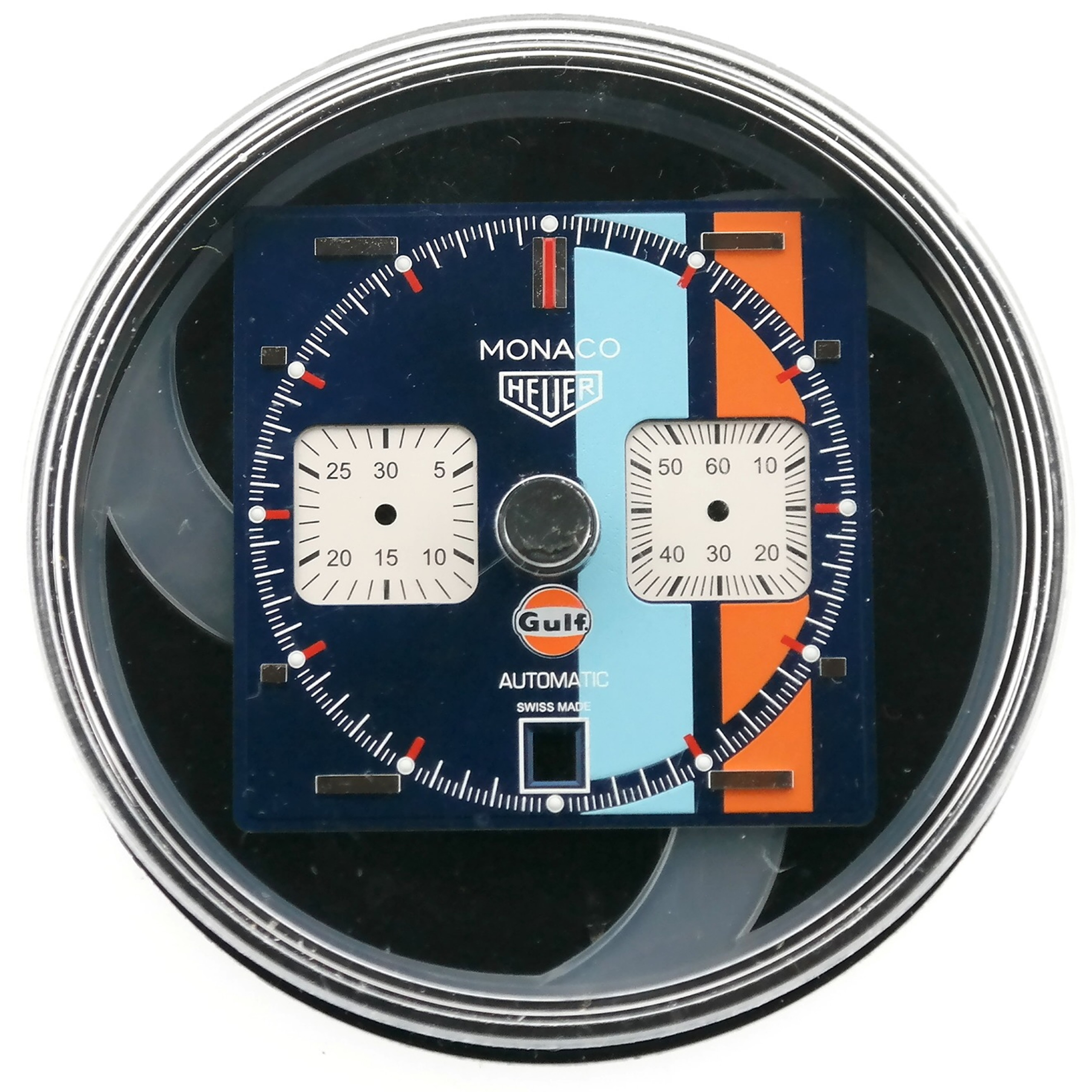

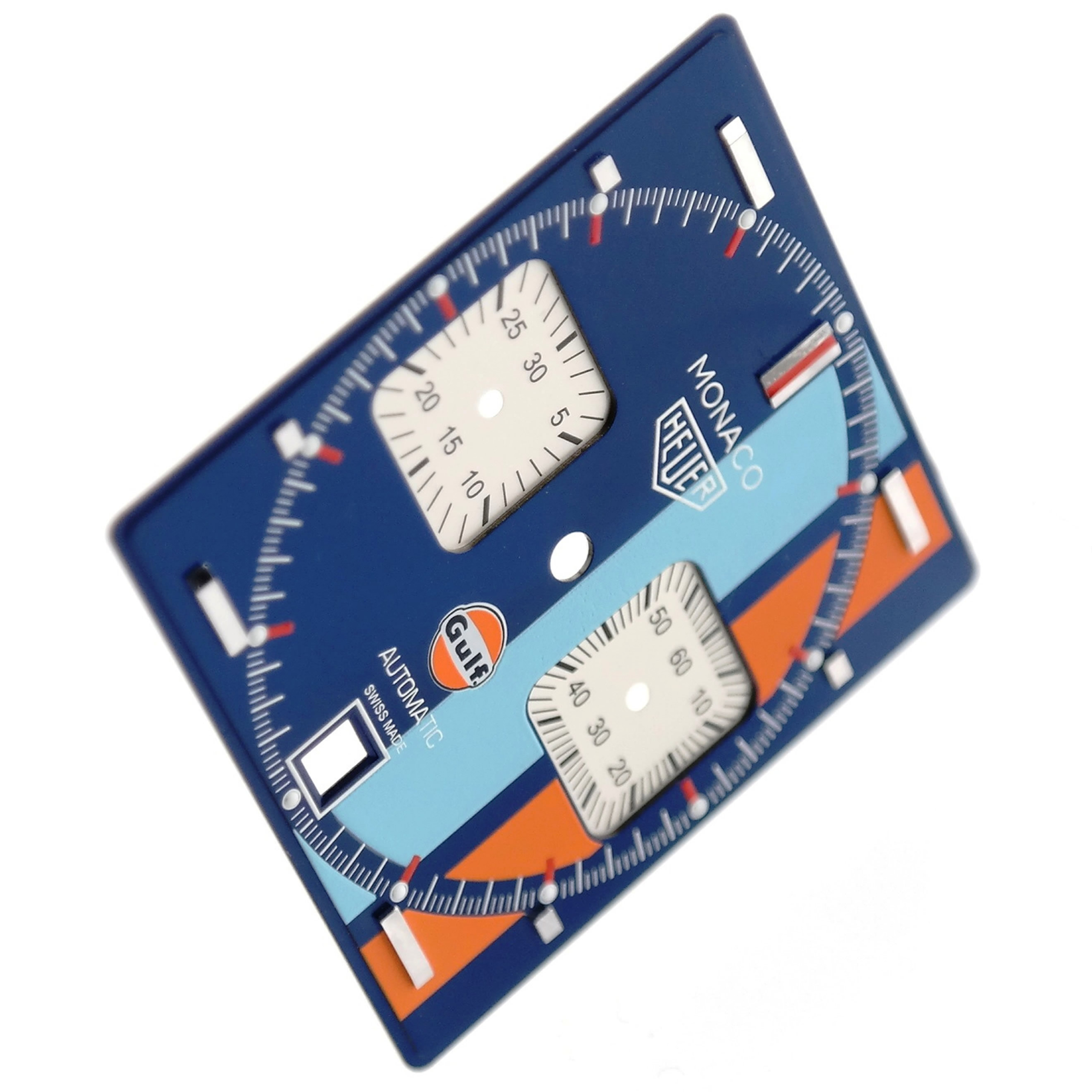

The dial is crafted with hand-applied faceted indexes, providing dimensional depth and light reflection. It displays both the TAG Heuer and Gulf Oil logos, along with the model name, movement type, and Swiss origin markings. The date aperture is positioned at 6 o’clock, compatible with the Calibre 11 movement’s date wheel. This dial has been graded Excellent in our Condition Grading Scale below and is in very good condition, never used.
The Monaco Gulf series is a modern reissue of the 1970s Heuer Monaco Gulf models, which were originally produced in limited quantities for the Gulf Oil racing team. The CAW211R reference is part of a numbered edition, though the total production count is not publicly disclosed by TAG Heuer. The dial’s design adheres to the original Gulf racing livery, featuring the distinctive light blue, orange, and white color scheme.
Specifications
The dial is manufactured for the TAG Heuer Monaco Calibre 11 CAW211R reference, designed to fit the 39 mm square case of the Monaco series. The faceted indexes are hand-applied and positioned to align with the movement’s hour markers, ensuring legibility and aesthetic balance. The date window at 6 o’clock is cut to accommodate the date wheel of the Calibre 11 movement, which is based on the Sellita SW300-1 automatic platform.
The dial surface features a matte finish with anti-reflective properties, maintaining the Gulf racing color scheme of light blue (Pantone 298 C) and orange (Pantone 151 C). The Gulf Oil logo is applied using pad printing, while the TAG Heuer logo and text markings are screen-printed for durability. The dial is marked with the following engravings: Heuer MONACO AUTOMATIC SWISS MADE. The dial feet are positioned at 12:30 and 6:30, compatible with the Monaco’s case architecture.
The Calibre 11 movement, used in this reference, is a modular chronograph based on the Sellita SW300-1, with a Dubois Dépraz chronograph module. The movement operates at 28,800 vph (4 Hz) and provides a 56-hour power reserve. The dial’s date aperture is sized to fit the 3.2 mm date wheel of the Calibre 11, ensuring proper alignment and functionality.
Compatibility
This dial is engineered exclusively for the TAG Heuer Monaco Calibre 11 CAW211R reference. It is not compatible with other Monaco variants, including the Calibre 12 or in-house Heuer 02 models, due to differences in case dimensions and movement mounting points. The dial feet positioning and date window alignment are specific to the CAW211R case reference, which measures 39 mm x 39 mm with a lug-to-lug distance of 40.5 mm.
Installation requires watchmaking tools, including a dial protector, hand-setting tools, and a case holder designed for square cases. The movement must be removed from the case to fit the dial, and the hands must be realigned to ensure proper timekeeping and chronograph function. The dial is not compatible with aftermarket or non-TAG Heuer movements, as the foot positions and date wheel alignment are proprietary to the Calibre 11.
Notes
- The article is sold “AS IS”. Please read our Warranty Policy before purchasing.
- Any parts not explicitly mentioned in this description or not visible in the accompanying photographs are not included.
- Colors may appear slightly different across various screens and devices so we cannot guarantee an exact screen-to-reality color match.
This TAG Heuer Monaco Gulf CAW211R dial is an authentic replacement component for collectors and watchmakers servicing the iconic Gulf Oil partnership timepiece.
