TAG Heuer Monaco Calibre 11 Watch Case – 39 mm – Full Assembly with Sapphire Crystal and Case-Back
Overview
This is a complete 39 mm watch case assembly for the TAG Heuer Monaco Calibre 11, a model first introduced in 1969 as one of the world’s first automatic chronograph watches. The Monaco’s square case design, originally crafted for the Heuer brand before the TAG merger, remains one of the most recognizable in horology due to its bold geometry and motorsport heritage.

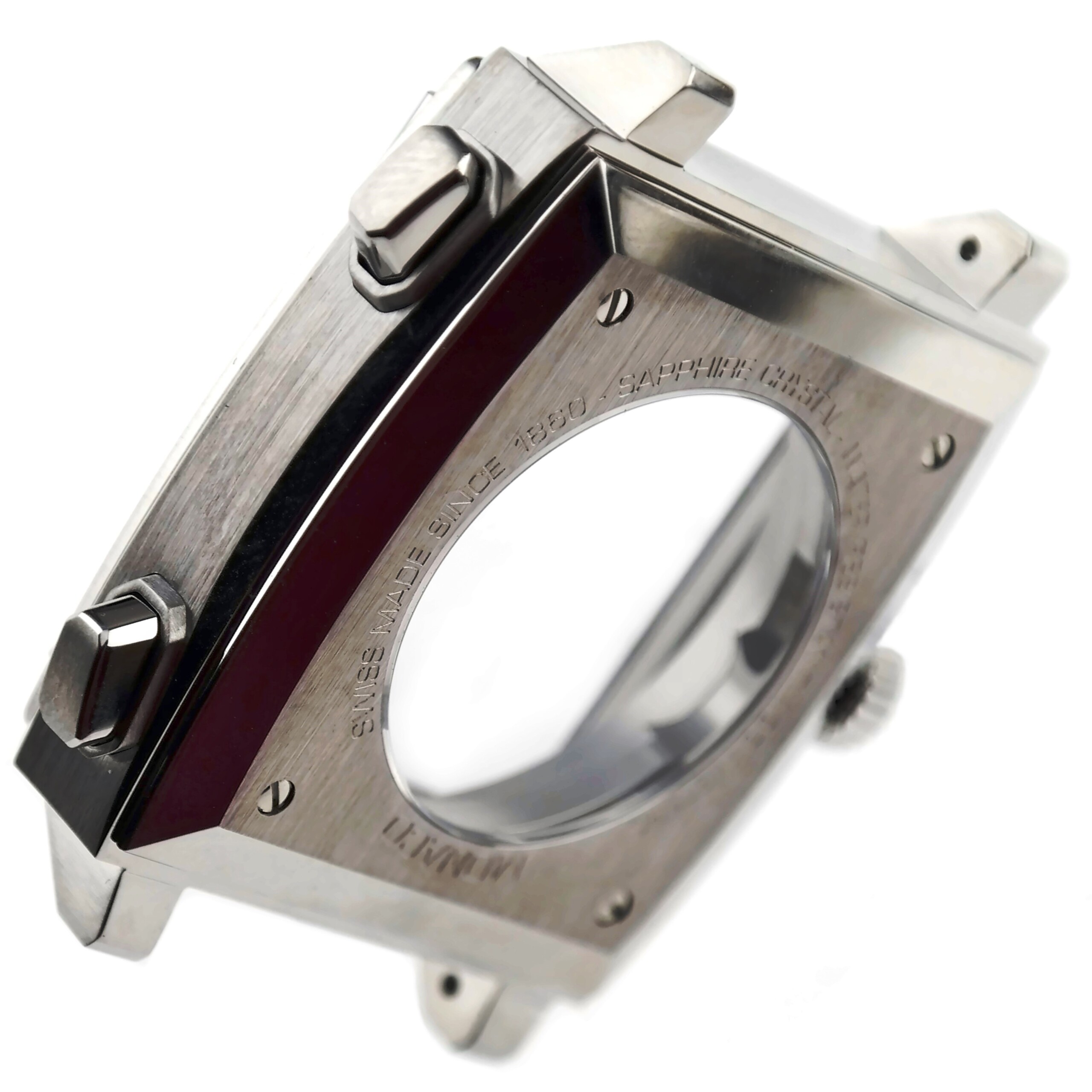

This case is made from 316L stainless steel with a combination of brushed and polished finishes, replicating the original factory specifications. The assembly includes the case middle, fixed bezel, sapphire crystal, screw-down case-back, crown, chronograph pushers, and all case screws. The case-back features a sapphire exhibition window, while the crown is signed with the historic Heuer logo—consistent with pre-1985 production models. All components are original TAG Heuer service parts, intended for refurbishment or restoration of the same reference.
Condition is graded Excellent in our Condition Grading Scale below, with no visible signs of wear, oxidation, or tool marks. The sapphire crystal is free of scratches, and all threads (crown, case-back, pusher tubes) are intact. This assembly does not include a movement, dial, hands, or strap—only the case components listed in the specifications.
Specifications
Diameter: 39 mm (excluding crown). Lug-to-lug distance: 40.5 mm. Lug width: 22 mm, compatible with standard Monaco straps and bracelets from the Calibre 11/12 series. Case thickness: 14.5 mm (including crystal and case-back). Material: 316L stainless steel with brushed vertical surfaces and polished chamfers. Crystal: flat sapphire with anti-reflective coating on the underside, original TAG Heuer specification. Case-back: screw-down, exhibition-style with sapphire window. Water resistance: 100 meters (10 ATM), as marked on the case-back.
Engravings and markings:

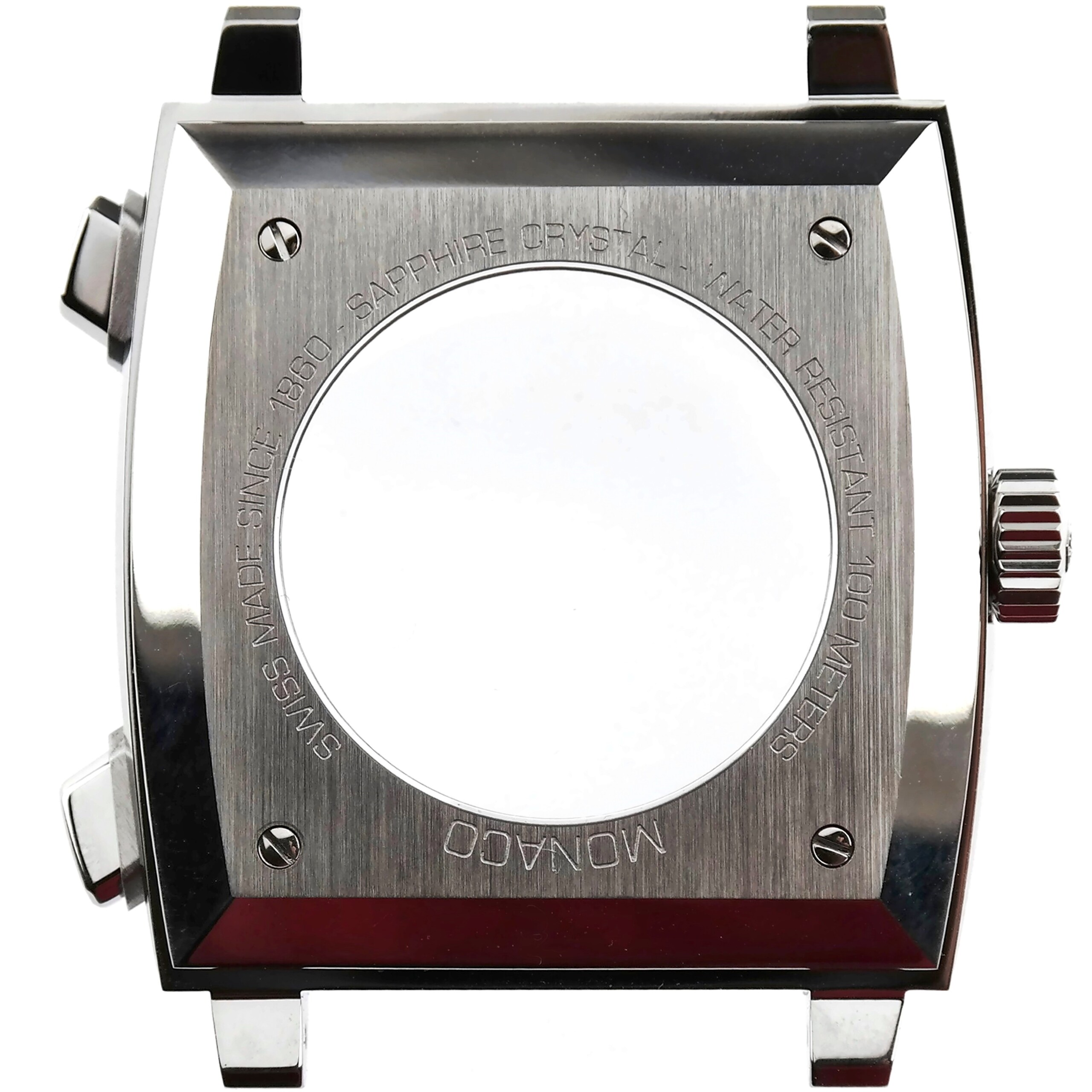

- Case-back (exterior ring): MONACO | SWISS MADE SINCE 1860 | SAPPHIRE CRYSTAL | WATER RESISTANT 100 METERS

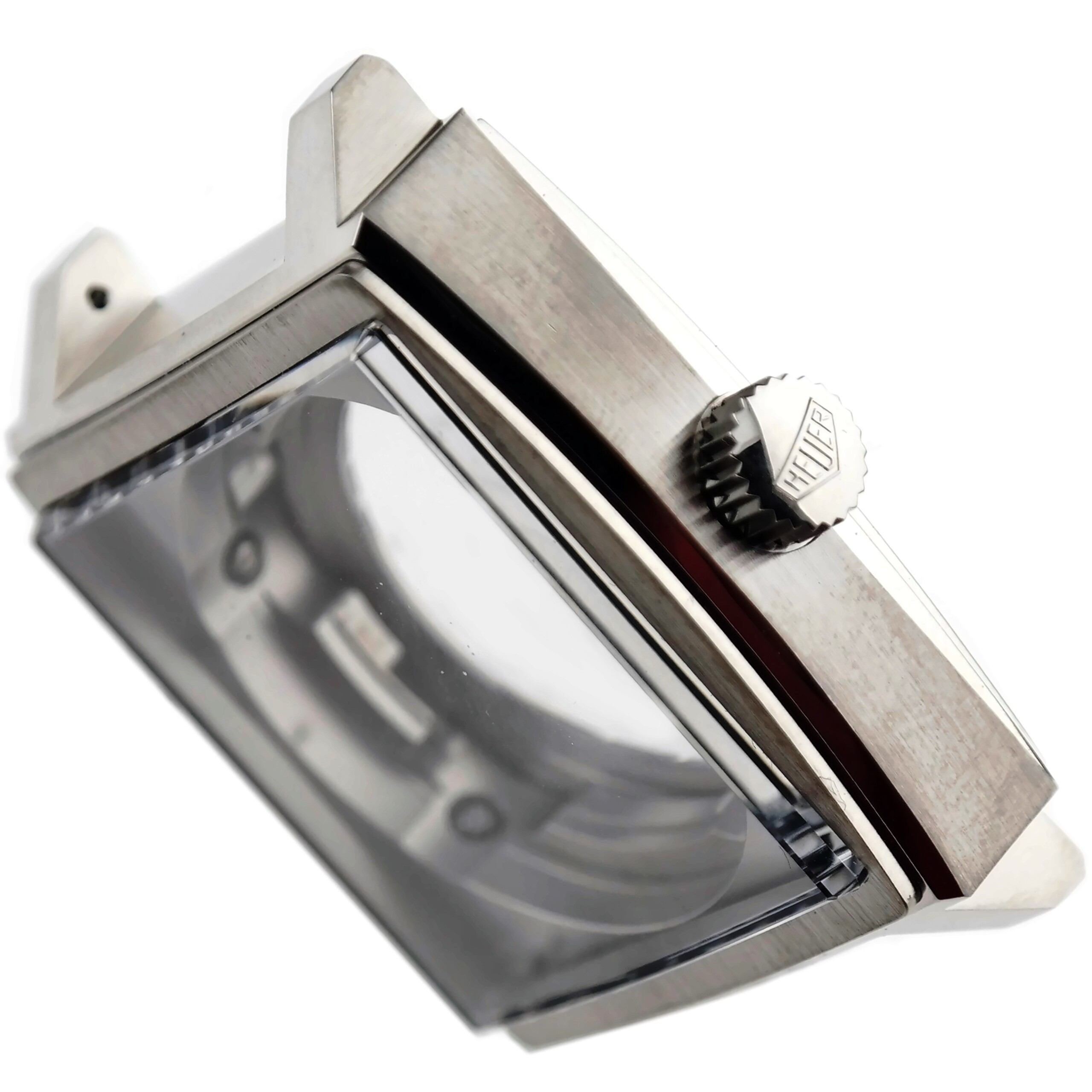

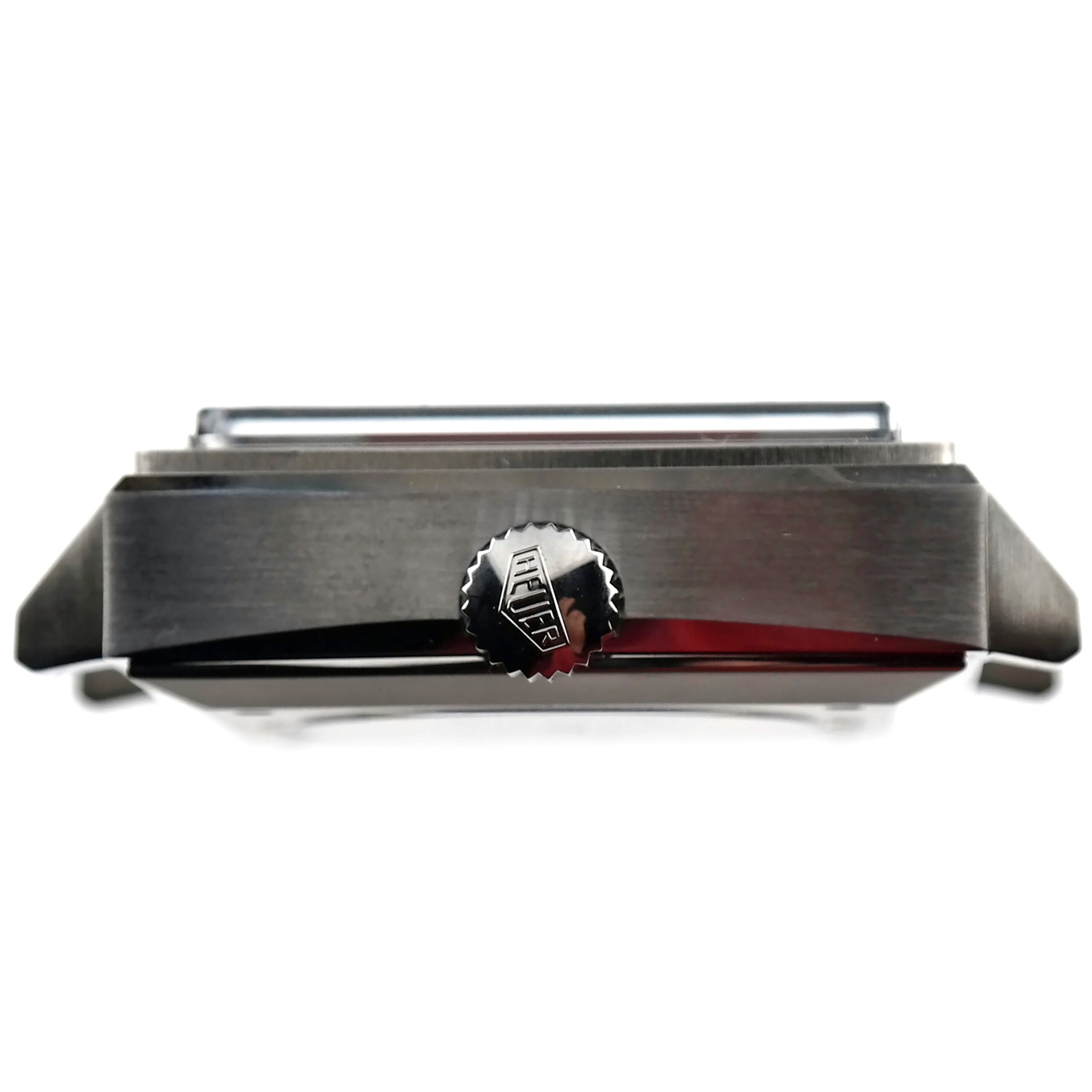

- Crown: HEUER logo in relief

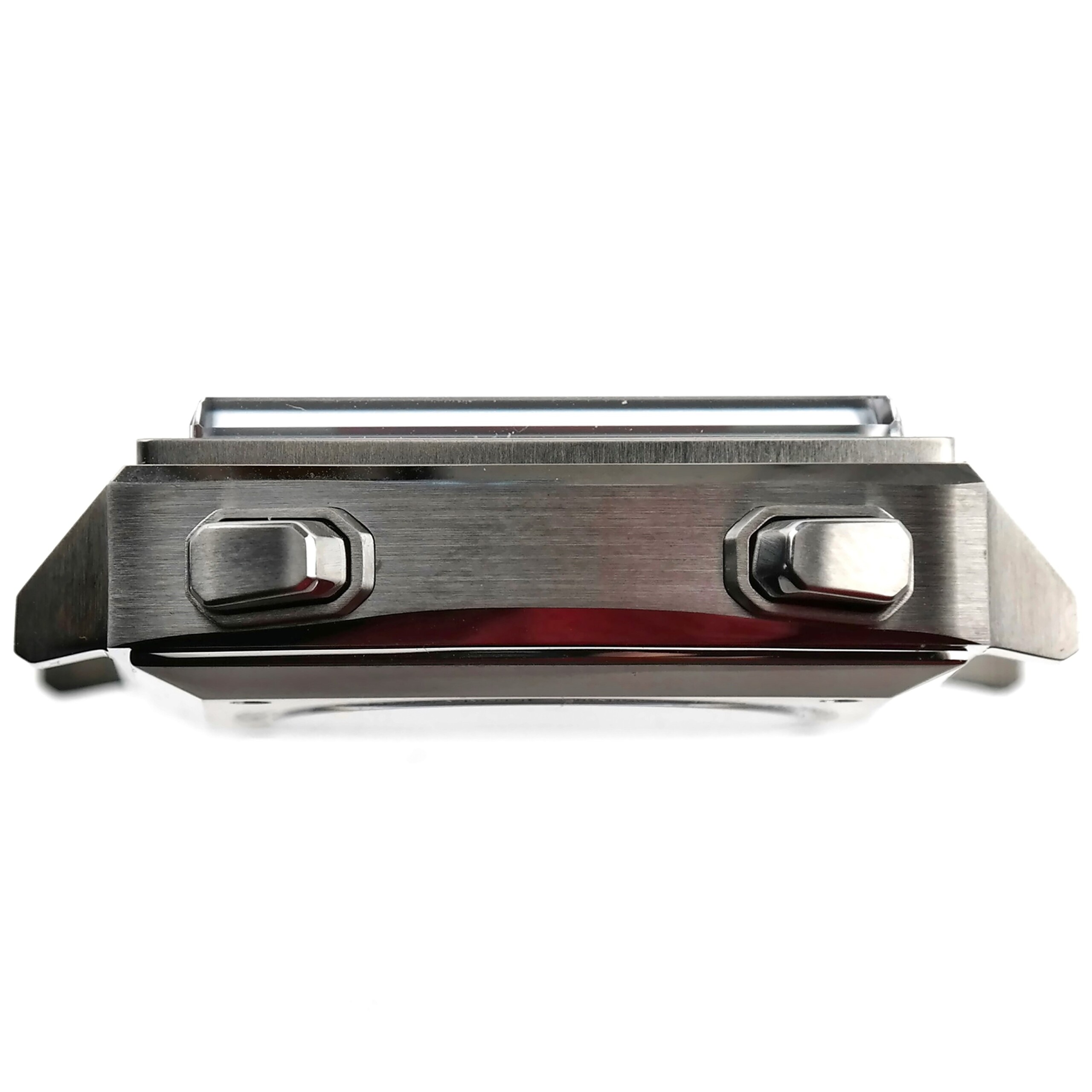

The crown and chronograph pusher tubes are press-fit and secured with gaskets. Case-back uses six cross-head screws (included) with threaded inserts in the case middle. All components match the original 1133B/1133G Monaco Calibre 11 specifications, including the 9 o’clock crown position and asymmetrical pusher layout.
Compatibility
Designed for TAG Heuer Monaco Calibre 11 models. The 22 mm lug width accepts all Monaco straps and the original “McQueen” perforated leather strap.
Notes
- The article is sold “AS IS”. Please read our Warranty Policy before purchasing.
- Any parts not explicitly mentioned in this description or not visible in the accompanying photographs are not included.
- Colors may appear slightly different across various screens and devices so we cannot guarantee an exact screen–to–reality color match.
- No movement, dial, hands, or strap are included. The case-back serial field is blank.
This full case assembly provides a factory-correct replacement for restoring a TAG Heuer Monaco Calibre 11 to original specifications, using authentic components with period-correct markings.
